Night Vision Rifle Scope Weapon Sight Military Infrared Night Vision Monoculars

Model: DT-NS8X5

Short Description:

Product description

DT – NS8X adopted high-performance super second generation image intensifier, making observation clarity greatly improved, in 1 to 2 km distance can distinguish the size of the adult goal. In night vision mode, as long as it can satisfy the light intensity of illumination of 10-3 meter (a faint glow) conditions of use, can be field sniper operation at night. The sight telescope volume is small, light weight, convenient operation, reliable performance, high cost performance. In addition, the aim has automatic anti-glare protection function, very suitable for urban operations. The gun aiming is equipped with independent control of infrared light, which can satisfy different working conditions of army, police operations.

Technical specifications:



MODEL DT-NS84 DT-NS85
Generation Gen 2+/Gen3(optional) Gen 2+/Gen3(optional)
Magnification 4X 5X
Resolution ( lp/mm) 60-64 60-64
Diopter +/-5 +/-5
Detection sensitivityM 1500 2000
Distinguish distanceM 1000 1500
Aperture 55mm 65mm
FOV(°) 11.5 8.5
Distance of pupil 50mm 50mm
Graduation type Back Light red cursor Back Light red cursor
Minimum mil 1/6MOA 1/8MOA
Battery type CR123(A)x1 CR123(A)x1
Battery lifeH 40-50 40-50
Operating Temperature -40 /+60 -40 /+60
Relative humidity 5%-98% 5%-98%
Impact resistance >1000G >1000G
Waterproof IP65IP67 optional IP65IP67 optional
Dimensionsmm 257x92x90 287x92x90
Weightno battery 850g(finished) 920g(finished)

Product Detail

Product Tags

Product Details

In addition, the sighting has the function of automatic anti-strong light protection, which is very suitable for outdoor operations. The gun is equipped with an independent and controllable infrared light compensator, which can meet the different operational conditions of the army and the police.

Product Specification

Model

DT-NS85

IIT

Gen 2+(Gen3)

Magnification

5X

Resolution

51-64

Detection distancem

2000

Recognition

1500

Lens system

F1: 1.5, F105mm

Pupil

65mm

FOVdeg

8.5

Distance of pupil

50mm

Graduation type

Back Light red cursor

Minimum mil

1/8MOA

Diopter range

+/-5

Battery type

CR123(A)x1

Battery lifeH

40-50

range of focus (m)

10--∞

Operating temperature

-40 /+50

relative humidity

5%-98%

Impact strength

>1000G

Environmental rating

IP65/IP67Optional

Dimensionsmm

287x92x90Containing eye mask and guide rai

Weightg

960g(Containing guide rai

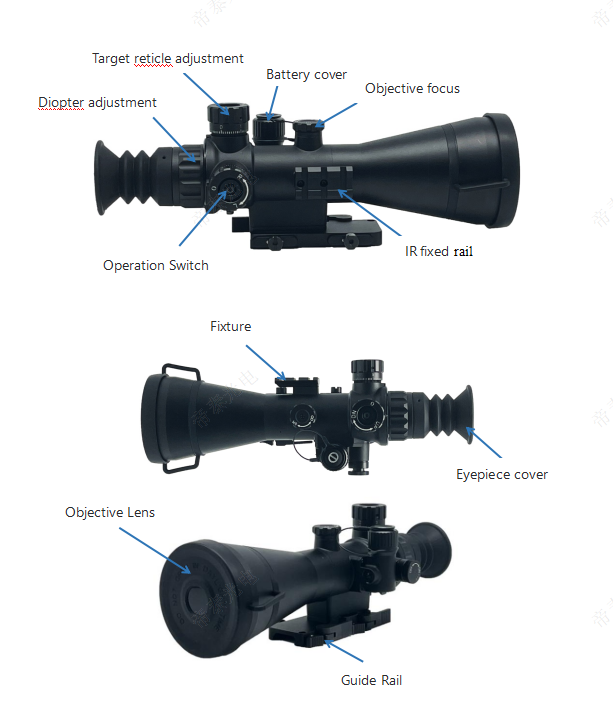

20220629190555

Target reticle adjustment

Adjustment of reticle brightness: as shown in figure ③, the ‘’off’’ knob is the first gear, and the ‘’ON’’ knob is the second gear. When the user needs to adjust the brightness of night vision graduation, turn the knob to the third gear, the fourth gear and the fifth gear in the on direction after ‘’ON’’, and the higher the gear is, the brighter the graduation brightness will be. The user can adjust the brightness to a suitable level according to personal preferences.

Up/down adjustment of reticle: when the user needs to adjust the up and down position of the night vision reticle, first, as shown in figure ⑥ - 1, stagger the position of "0" and the indicating point, and then, as shown in figure ⑥ - 2, pull the knob up, turn the knob to adjust up and down, the up indicating direction is upward adjustment, and the DN indicating direction is downward adjustment. The user can adjust to the appropriate up and down position according to personal habits and preferences. After adjustment, press down the knob to lock it.

组合 212
组合 216

Left and right adjustment of reticle: when the user needs to adjust the left and right positions of the night vision reticle, first, as shown in figure ⑦-1, stagger the position of "0" and the indicating point, and then, as shown in figure ⑦-2, pull the knob to the right, turn the knob to the left and right for adjustment. The L indicating direction is to the left, and the R indicating direction is to the right. The user can adjust it to the right and left position according to personal habits and preferences. After adjustment, press the knob to the left to lock it.

组合 228
组合 222

Zero adjustment

When the user needs to adjust the zero position, first align "0" with the indication point, as shown in figure ⑧ - 1, then pull up and down (left and right) knobs to the highest position, as shown in figure ⑧ - 2, turn the position of adjusting the zero position to the position required by the user, and then press back to the lowest position for locking, as shown in figure ⑧ - 3, the zero position adjustment is completed. (the upper and lower knobs are adjusted in the same way as the left and right knobs)

组合 232
组合 236
组合 240
