Product Description:

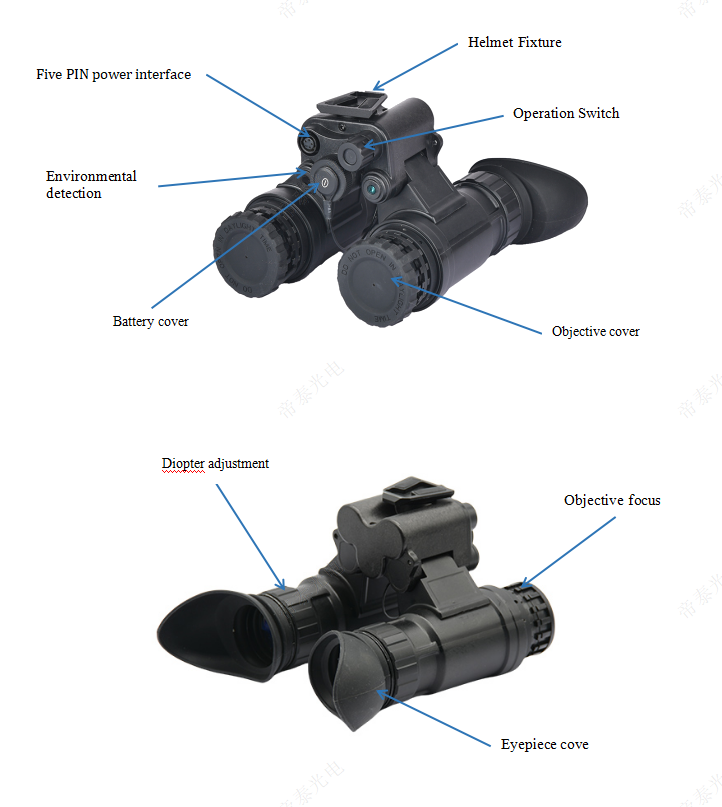

DTS-35 is a high-performance military head mounted night vision binocular built by Detyl Optoelectronics. It has the large field of view, high definition, no distortion, light weight, high strength (the overall performance is much better than the original version of the U.S. military products), which is the ideal choice for military night equipment.
Technical specifications:
| MODE |
DTS-35 |
| Generation |
Gen 2+/Gen3(optional) |
| Magnification |
1X |
| FOV(°) |
50 +/-1(40 optional) |
| Automatic Brightness Control |
YES |
| Bright Light Cut-off |
YES |
| Infrared Illuminator |
Built-in(850nm 20mW) |
| IR Indicator |
YES |
| Low Battery Indicator |
YES |
| Battery type |
AA battery (AA x1) / CR123×4 Battery pack |
| Power supply |
1.2-1.6V |
| Installation |
Head mounted(standard American helmet interface) |
| Control mode |
ON/IR/AUTO |
| Battery capacity |
800-3200maH |
| Battery life |
40-100H |
| Optical distortion |
0.1% Max |
| Distance of pupil |
20-45mm |
| Eyepiece aperture |
9mm |
| Diopter adjustment |
+ / – 5 |
| Off-axis （mm） |
5-10 |
| Eye distance adjustment range |
50-80mm |
| Operating temperature |
-40–+55℃ |
| Relative humidity |
5%-95% |
| Waterproof |
IP65/IP67 |
| Dimensions |
110x100x90 |
| Weight |
330g(housing)/480g(finished) |
