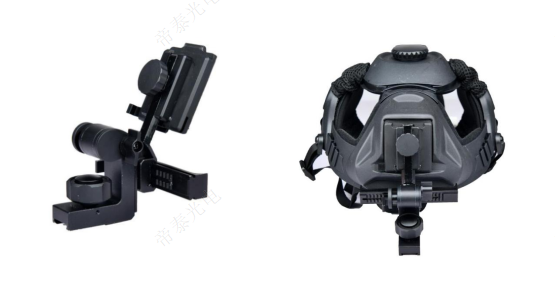

Universal Helmet Connector

Model: DT-HC8

Short Description:

Product description

Universal helmet assembly DT-HC8 with independent intellectual property have patent protected. The night vision is made from high strength aviation aluminum alloy; the function is all ready, flexible operation, easy to use, durable, etc. Have freedom in all three axis is adjustable; Product 180 degrees, three docking stations, multiple functions such as automatic shutdown check. Its interfaces and function high strength aviation aluminum alloy as are interchangeable with general bulletproof helmets, especially suitable for special operations forces wearing equipment needs.



Technical specifications:

NO. ITEM SPECIFICATRIONS REMARKS
1 Vertical  adjustment +/-10mm Lock by thread-off proof Knob
2 Horizontal adjustment +/-25mm Self lock by thread-off proof knob
3 Radial adjustment +/-12mm Lock by thread-off proof Knob
4 Rotate  adjustment 3Ports 2x90degrees Rotate Self lock
5 State detection Two magnetic detection Logic code operation
6 Material Aviation aluminum alloy High precision CNC machining
7 Dimensions 110x90x70mm No package
8 Weight 120g No package

Product Detail

Product Tags

20220629114402
20220629114543

Product description:

Universal helmet connector DT-HC8 with independent intellectual property have patent protected. The night vision is made from high strength aviation aluminum alloy; the function is all ready, flexible operation, easy to use, durable, etc. Have freedom in all three axis is adjustable; Product 180 degrees, three docking stations, multiple functions such as automatic shutdown check. Its interfaces and function high strength aviation aluminum alloy as are interchangeable with general bulletproof helmets, especially suitable for special operations forces wearing equipment needs.

Directions for use:

1.Connection with Gm's and soft helmets :

Tack the attachment connector with the device holder of the soft helmet or steel helmet,Firstly, the fastener is inserted into the slot position of the device connecting seat, Then press the button to retract the padlock until the padlock connector can be closed with the device holder of the soft helmet or the helmet, and finally release the button to complete the connection with the soft helmet or the universal helmet. When you want disconnect it, you need to press the lock button first..

2.With night vision product installation:

Anticlockwise twist the lock knob to the cut-off position, align the dovetail cards of night vision equipment to the device slot of the card, press the anti-stripping button, fit the device cards and the card slot to the appropriate position,let go of the button, at this time the device has been connected to the universal pendant, clockwise twist the lock knob. When dismantled, loosen the lock knob to the maximum position and press the release button.

3.Equipment height (up and down) adjustment:

Turn the height adjusting knob counterclockwise, slide the height adjusting knob to adjust the equipment to the appropriate height, and lock the height adjusting knob clockwise.

4. Left and right adjustment of the device:

Press left and right to adjust the push and twist, so that the device can slides left and right, when sliding to the appropriate position, releasing the left and right adjustment push and twist will automatically lock the current horizontal position and realize the left and right adjustment of the device.

5.Front and rear adjustment of the equipment:

Release the lock knob, it can make slide the night vision and other equipment along the dovetail groove. (At this time can not press the anti-release button, in order to avoid product sliding.) When the equipment is adjusted to the proper position, tighten the locking knob.

6.Device rollover refers to status detection:

when the device is not needed to use for the time and not want to removed it .The device can be flipped up by pressing the rollover button while swinging the device up. When the flip is out of the current position, the flip button can be released, and the device will automatically lock into a new position after turning to a specific angle. In the flip state, there are two angle positions, 90 degrees and 180 degrees respectively.respectively. Except the 0 degree position is the working position, the other two positions are the standby position. The system will automatically detect the device and put the device in the standby state (the standby state requires night vision and other devices to have the function of standby detection).

7.Technical specifications:

NO. ITEM SPECIFICATRIONS NOTE
1 Vertical  adjustment +/-10mm Lock by thread-off proof Knob
2 Horizontal adjustment +/-25mm Self lock by thread-off proof knob
3 Radial adjustment +/-12mm Lock by thread-off proof Knob
4 rotate  adjustment 3Ports 2x90degrees Rotate Self lock
5 State detection Two magnetic detection Logic code opration
6 Product material High strength aviation aluminum alloy High precision CNC machining
7 Product size 110x90x70mm No package
8 product weight 180g No package

NOTE :

1.This product is refined from high-strength aviation aluminum alloy, the normal working temperature is - 60~+200 degrees Celsius, please do not use in an unsuitable temperature environment, in order to avoid product damage.

2.The regulation function of this product has a certain regulation range. Do not force regulation, so as not to exceed the regulation range and cause damage to the product.

3.The mechanical strength of this product can ensure normal operation, but the mechanical strength is limited, do not use improper pulling, bending and extrusion in the operation process to avoid permanent damage to the product.

4.This product is in use process, don't disassemble and repair this product during use or when it is damaged by improper us, please directly contact with dealers.
