Video Output and Eyepiece Distance Adjustable Military Night Vision Goggles

Model: DT-NH9X1

Short Description:

Product description:


DT-NH9 is a new product developed based on the latest optoelectronic technology. The instrument uses a high-performance second-generation/third-generation image intensifier tubes. There are 3 versions: low-light version, video output version, thermal fusion.The version has excellent performance, small size, light weight, all-metal shell, uniform vision, clear imaging, simple operation, can be equipped with night vision image output, high efficiency, and the night vision can be changed by changing the objective lens (or connecting the magnification lens) The instrument has built-in infrared auxiliary light source and automatic anti-glare protection system.


Technical specifications:


MODE DT-NH921 DT-NH921s(Thermal fusion)
Generation Gen 2+/Gen3(optional) Gen 2+/Gen3(optional)
Magnification 1X(3X/4X/5X) 1X(3X/4X/5X)
FOV(°) 42+/-3 42+/-3
Adjustable range of eye distance 65+/-5 65+/-5
Diopter +/-5 +/-5
Total Darkness IR System YES YES
Automatic Brightness Control YES YES
Bright Light Cut-off YES YES
Infrared Illuminator Built-in(850nm 20mW) Built-in(850nm 20mW)
IR Indicator YES YES
Low Battery Indicator YES YES
Material Aviation aluminum Aviation aluminum
Power supply(v) 2.6-4.2V 2.6-4.2V
Battery type(v) AA(2) AA (2)/ Battery pack
Operating Temperature(℃) -40/+50 -40/+50
Relative humidity 5%-98% 5%-98%
Waterproof IP65(IP67 Optional) IP65(IP67 Optional)
Dimensions (mm) (without eye mask) 130x130x56 115x127x69
Wight(g) 356g(housing)/410g(finished) 398g(housing)/468g(finished)
Video acquisition power supply(Optional) external power source 5V 1W external power source 5V 1W
video resolution(Optional) Video 1Vp-p SVGA Video 1Vp-p SVGA

Thermal imaging module parameters

Type of sensor :   Unrefrigerated long wave infrared thermal radiometer
Detector resolution :   384×288
Applicable wavelength :um   8-12um
Objective lens focal length:   fixed-focus
Objective aperture:   F1.0
Brightness:   adjustable
Focusing distance:   250mm~∞
Image mode:   White heat/black heat/green bottom/red/hook edge
Detection distance: (1.7M people)   Detection range: 450M Identification range: 350M
Battery:   CR123(A)x4  2.4~4.2V

Product Detail

Product Tags

Product Details

The night vision device has a built-in infrared auxiliary light source and an automatic anti-glare protection system.

It has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is an ideal equipment for public security departments, armed police forces, special police forces, and guarding patrols.

The distance between the eyes is adjustable, the imaging is clear, the operation is simple, and it is cost-effective. The magnification can be changed by changing the objective lens (or connecting the extender).

Technical Specifications:

IIT Gen2+ Gen3
Magnification 1X 1X
Resolution 45-57 51-57
Photocathode type S25 GaAs
S/N(db) 15-21 18-25
Luminous sensitivity(μa-lm) 450-500 500-600
MTTFhrs 10,000 10,000
FOV(deg) 42+/-3 42+/-3
Detection distance(m) 180-220 250-300
Adjustable range of eye distance 65+/-5 65+/-5
Diopter(deg) +5/-5 +5/-5
Lens system F1.2, 25mm F1.2, 25mm
Coating Multilayer broadband coating Multilayer broadband coating
Range of focus 0.25--∞ 0.25--∞
Auto anti strong light High Sensitivity, Ultra Fast, Broadband Detection High Sensitivity, Ultra Fast, Broadband Detection
rollover detection Solid non-contact automatic detection Solid non-contact automatic detection
Dimensions (mm) (without eye mask) 130x130x69 130x130x69
 material Aviation aluminum Aviation aluminum
Weight (g) 393 393
Power supply  (volt) 2.6-4.2V 2.6-4.2V
Battery type (V) AA(2) AA(2)
Wavelength of infrared auxiliary light source (nm) 850 850
Wavelength of red-explode lamp source (nm) 808 808
Video capture power supply (optional) External power supply 5V 1W External power supply 5V 1W
Video resolution (optional) Video 1Vp-p SVGA Video 1Vp-p SVGA
Battery life (hours) 80(W/O IR)    40(W/IR) 80(W/O IR)    40(W/IR)
Operating Temperature (C -40/+50 -40/+50
Relative humidity 5%-98% 5%-98%
Environment rating IP65IP67 Optional IP65IP67 Optional

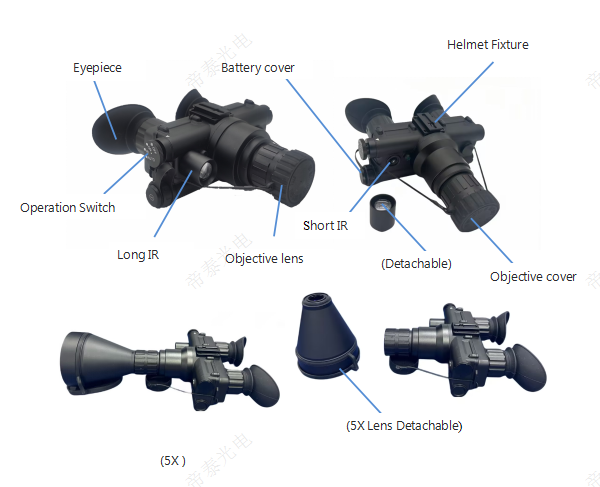

Night vision goggles NH9X DETAIL5

Objective adjustment

The purpose of objective lens adjustment to see clearly at different distances. Before adjusting the objective lens,Please adjust the eyepieces first according to the aforementioned method. When adjusting the objective lens, please select a darker environment. As shown in Figure ④, open the objective lens cover, aim at the target, and turn the objective lens focusing handwheel clockwise or counterclockwise until the clearest environment image is seen, and the objective lens adjustment is completed. When observing targets at different distances, the objective lens needs to be adjusted again according to the aforementioned method.

Infrared mode

When the ambient illuminance is very low (full black environment), and the night vision device cannot observe a clear image, you can turn the work switch clockwise to another gear. the system enters the "IR" mode. At this time, the built-in infrared auxiliary lighting of the product is turned on to ensure normal use in a completely dark environment. Note: In the infrared mode, if you encounter similar equipment, it is easy to expose the target.
