Products Description

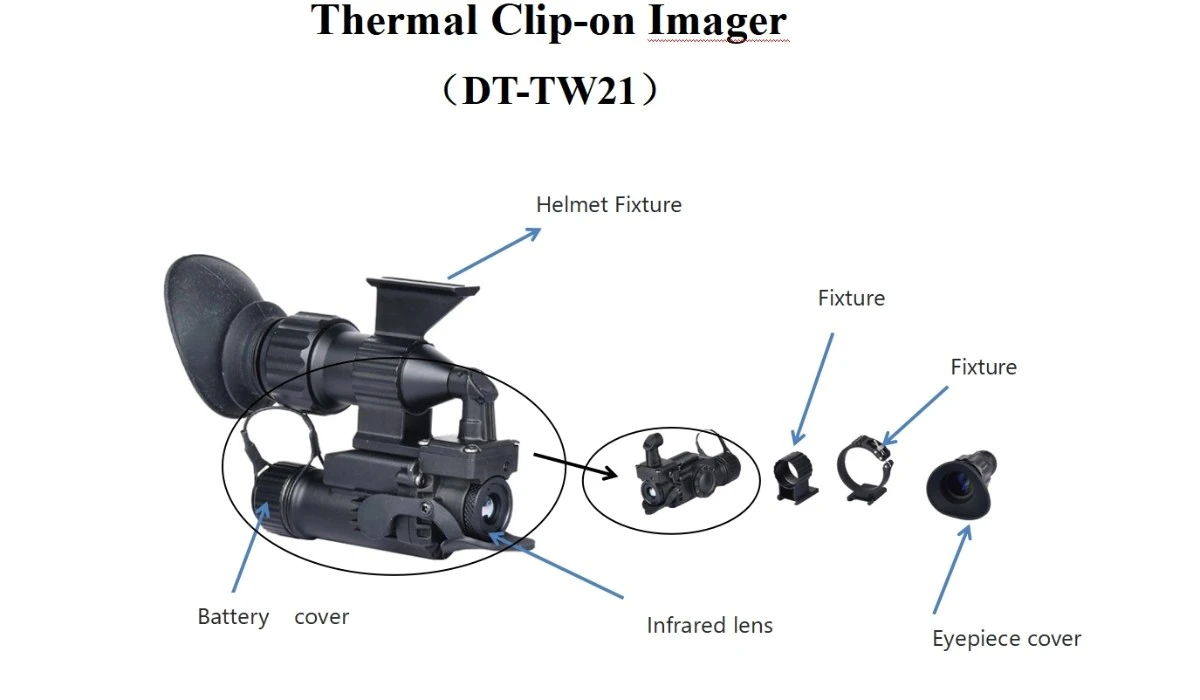

DT-TW21 clip on
The DT-TW21 Multi-functional thermal imager mococulars is a groundbreaking modular visual enhancement system, architected around a high-sensitivity thermal core and designed to deliver superior imaging across the broadest spectrum of environments and applications.
handheld thermal imager mococular
As professional Multi-functional thermal imager mococulars, its core strength lies in exceptional versatility: it functions as a standalone handheld thermal imager mococular for patrols and inspections, a helmet-mounted thermal sensor for navigation and awareness, and most powerfully, as a clip-on system in front of standard night vision goggles.
multi-functional
These multi-functional capabilities make it a flexible tool that adapts to diverse user needs, eliminating the need for multiple separate devices.
Key Performance
In its clip-on configuration, the Multi-functional thermal imager mococulars (DT-TW21) provides a real-time thermal overlay, creating an instant fusion capability that significantly improves night recognition by allowing operators to quickly pinpoint living targets against the darkness-one of the key advantages of this multi-functional device.
Equipped with a rapid-attach/detach mount that requires no tools and maintains zero retention, these Multi-functional thermal imager mococulars ensure a secure fit on various platforms, enabling quick transitions between different usage modes.
The thermal sensor of the mococulars offers multiple fields of view and digital zoom functions, while the video output port allows for real-time streaming of footage to command units or recording devices, enhancing operational efficiency.
Product Function Instructions
Technical Specifications
|
MODE |
DT-TW21 |
|
Volume:mm |
88x38x70(Handheld)88x38x82(Head-mounted)88x43x78(Clip-on) |
|
Weight:g(exclude battery) |
140(Handheld)144(Head-mounted)92(Clip-on) |
|
Battery: |
CR123A(1)/ Battery pack |
|
Battery life:H |
3.5-4.5 |
|
Waterproofing grade |
IP67 |
|
Compatibility |
PVS31 PVS14 NVG18 DTS31 DTS35 DTGI8 DTNH9 DTS13 |
|
Multifunction |
Handheld Head-mounted Clip-on |
|
Type of sensor |
unrefrigerated long wave infrared thermal radiometer |
|
Detector resolution |
384x288 |
|
Applicable wavelength:um |
8-12um |
|
Amplification factor: |
X1.2(Handheld/Head-mounted)x1.0(Clip-on) |
|
Field of view:FOV |
32(Clip-on)36°(Handheld/Head-mounted) Center of circle |
|
Focal distance of obiective: |
fixed-focus |
|
Obiective aperture: |
F1.0 |
|
Luminance: |
adjustable |
|
Focussing distance: |
250mm~ꝏ |
|
Image model: |
White/black/green/red/High light/Outline |
Products Conclusion
Constructed from magnesium alloy, the Multi-functional thermal imager mococulars (DT-TW21) is both lightweight and exceedingly durable, capable of operating in extreme temperatures and resistant to water immersion-ensuring reliable performance in harsh environments.
Designed to be an indispensable force multiplier, these Multi-functional thermal imager mococulars excel in a wide range of missions, including long-range observation, firefighting, maritime interdiction, and wildlife management.
Its modular design, combined with superior thermal imaging performance and multi-scenario adaptability, makes it a versatile tool for professionals across various fields who require high-quality thermal visualization and flexible operation.
FAQ
Q: What is the core strength of the Multi-functional thermal imager mococulars (DT-TW21)?
A: Its core strength is exceptional versatility, functioning as a handheld device, helmet-mounted sensor, and clip-on system for night vision goggles.
Q:What advantage does the clip-on configuration of the Multi-functional thermal imager mococulars offer?
A: It provides a real-time thermal overlay, creating fusion capability to quickly pinpoint living targets and improve night recognition.
Q: What material is the Multi-functional thermal imager mococulars (DT-TW21) made of?
A: It is constructed from magnesium alloy, which is lightweight and highly durable.
Q: What functions does the thermal sensor of the Multi-functional thermal imager mococulars have?
A: It offers multiple fields of view, digital zoom functions, and a video output port for real-time streaming or recording.
