Products Description

Complete Night Vision Solution for Outdoor

Product description - DT-NH8X1D

The DT-NH8X1D redefines versatile night operations by merging high-performance image intensification with unprecedented modularity and optical flexibility in a lightweight dual-tube system, standing as a premier example of Night Vision with Adjustable Magnification

Transformable Tool‑Free Dual‑Mode Design

its core genius lies in a revolutionary, tool-free design that transitions seamlessly between a traditional, bridged binocular for immersive stereoscopic viewing and two fully independent, high-performance night vision monoculars. This instant transformability doubles the system's utility, enabling critical operational flexibility such as two-person team sharing or simultaneous deployment on a helmet and a weapon.

Professional Night Vision for Tactical Applications

Advanced Night Vision System Bundle for Professional Users

Customizable Magnification for Versatile Missions

Central to its adaptability is a highly advanced adjustable magnification system- the defining feature of Night Vision with Adjustable Magnification. Moving beyond fixed optics, the DT-NH8X1D employs a platform-based approach utilizing interchangeable objective or focal lenses. This allows users to tailor the field of view and magnification level to specific mission profiles-from wide-angle situational awareness to detailed observation at longer ranges. This optical configurability ensures the system is optimally suited for diverse scenarios, from close-quarter navigation to extended reconnaissance, a key advantage that distinguishes these Night Vision with Adjustable Magnification from conventional night vision devices.

Tough Build with Intelligent Image Tube Protection

Technologically robust, each monocular pod integrates a powerful built-in infrared illuminator with multiple power settings for optimal clarity in total darkness, coupled with sophisticated automatic bright source protection to safeguard the sensitive image intensifier tubes from damage. Housed in rugged metal alloy, the units are built for harsh environments.

The bridge mechanism itself features secure, positive-locking connectors that guarantee perfect alignment and stability in binocular mode, with no compromise to durability when separated. This rugged construction enhances the reliability of Night Vision with Adjustable Magnification in demanding field missions.

Product Function Instructions

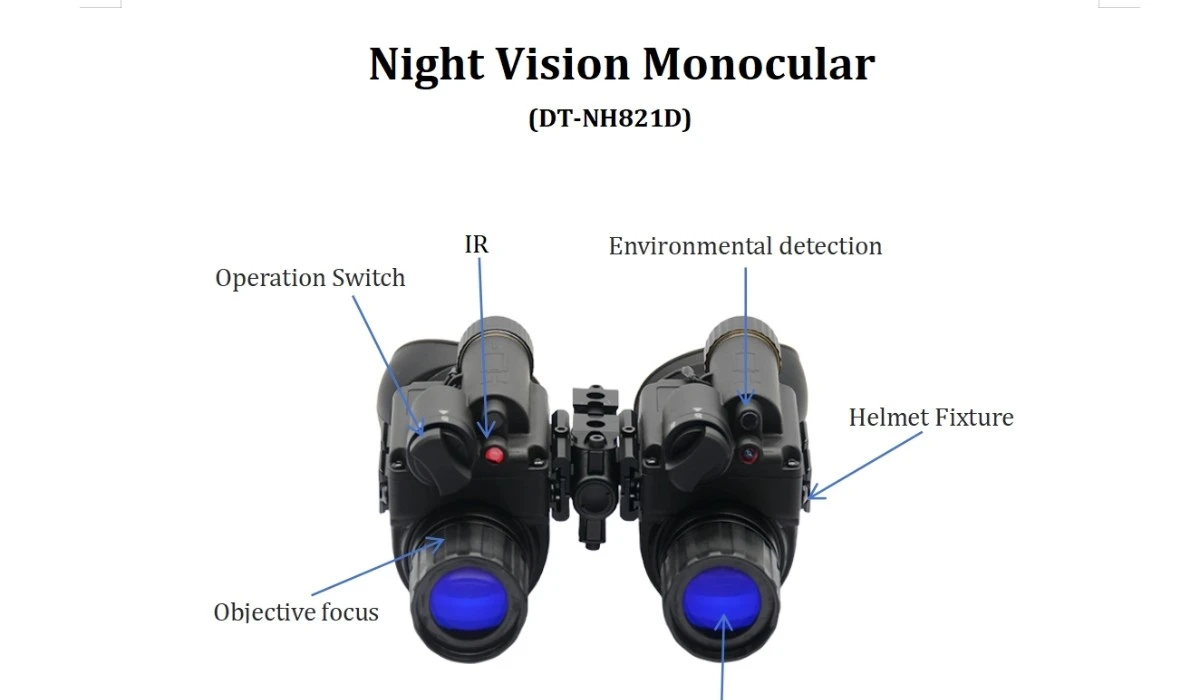

Hands-Free for Crop Protection Night Vision Camera for Defense Applications

Technical Specifications

MODEL	DT-NH821D
Generation	Gen 2+/Gen3(optional)
Magnification	1X(3X/4X/5X)
Resolution (lp/mm)	60-64
S/N(dB)	18-24
FOV(°)	42+/-3
Capability	Flip-Up on-off, side Flip-Up on-Off
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared llluminator	Built-in(850nm 20mw)
IR indicator	YES
Low Battery Indicator	YES
Adjustable range of eye distance	65+/-5mm
Diopter	+5/-5
Range of focus (M)	0.25--∞
Material	Aviation aluminum
Power supply	2.6-4.2V
Battery type	CR123(A)x2
Operating Temperature (C	-40/+50
Relative Humidity	5%-98%
Waterproof	IP65(IP67 optional)
Dimensions(mm)	115x127x69
Weight (no battery)	460g(housing)/610g(finished)

The system boasts wide compatibility with standard helmet and weapon mounts, further enhancing its modular ecosystem. For tactical units, survivalists, and professional users who demand maximum capability and a future-proof configuration from a single investment, the DT-NH8X1D stands as the ultimate tool. It delivers not just superior night vision, but a configurable visual system that actively adapts to the mission, the team, and the terrain- redefining the benchmarks of modern Night Vision with Adjustable Magnification.
