Products Description
The GPNVG 18 with Wide Field Sensor (DTG-18F) represents a significant evolution in panoramic night vision technology, integrated with a high-performance wide field sensor that not only delivers an ultra-wide field of view to enhance observation efficiency but also offers unparalleled tactical and practical flexibility for various low-light scenarios.
Its defining innovation is the integrated side-flip-up On/Off mechanism, which allows operators and observers to instantly deactivate the tubes and physically flip the entire assembly upward with one intuitive motion-transitioning immediately to unaided vision or other optical devices without removing the helmet or compromising their position
This flip-up feature, paired with the advanced wide field sensor of the GPNVG 18, is indispensable in scenarios requiring rapid alternation between enhanced and natural vision, such as navigating mixed-light environments (common in wildlife observation at dawn/dusk), reading field notes or maps, or operating equipment with built-in displays.
The device incorporates advanced auto-gating technology that instantaneously regulates tube gain in the presence of bright light sources-like sudden flashlight glare, vehicle lights, or natural light bursts-protecting the sensitive photocathodes and preventing temporary blindness, while the wide field sensor ensures clear, consistent imaging across the entire viewing range.

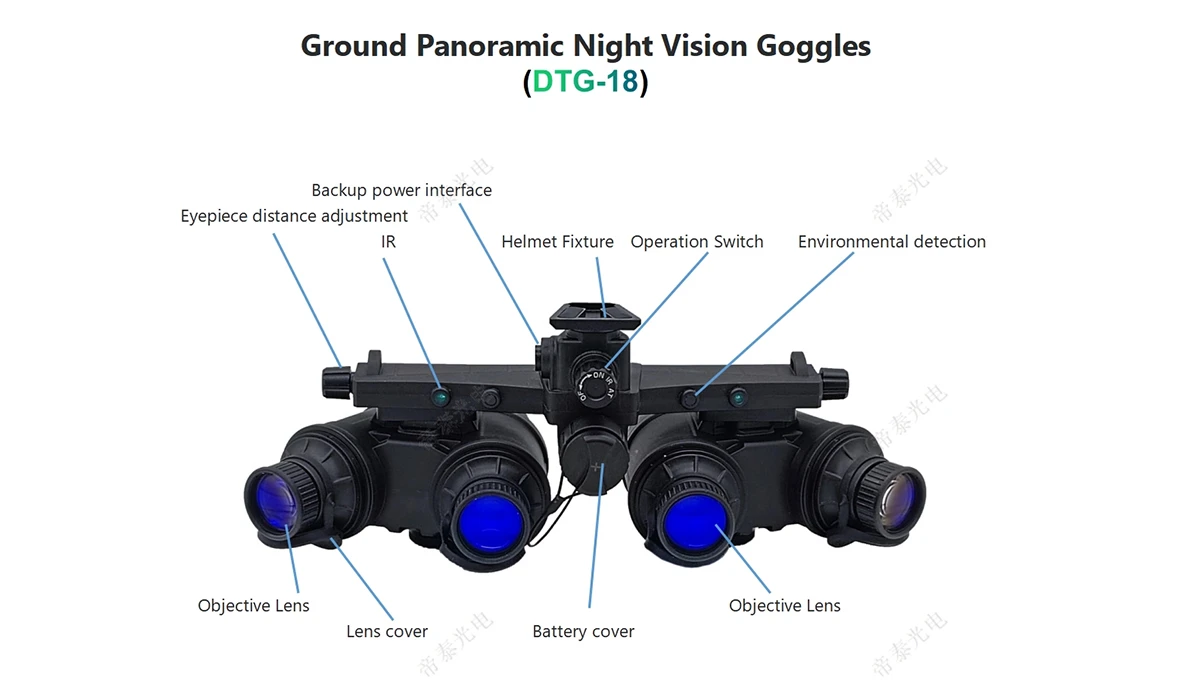

Product Part Display
Technical Specifications
|
MODE |
DTG-18F |
|
Generation |
Gen 2+/Gen3(optional) |
|
Magnification |
1X |
|
FOV(°) |
120x50 +/-2°Horizontal 120+/-2 °Vertical 50 +/-2 ° |
|
Diopter |
(+1.5~-2.5) |
|
Capability |
Flip-Up On-Off Side-up On-off |
|
Automatic Brightness Control |
YES |
|
Bright Light Cut-off |
YES |
|
Infrared llluminator |
Built-in(850nm 20mw) |
|
IR Indicator |
YES |
|
Low Battery indicator |
YES |
|
Battery type |
CR123Ax1/CR123Ax4 Battery pack |
|
Power supply |
2.6-4.2V |
|
Battery capacity |
800-3200maH |
|
Optical distortion |
0.5% Max |
|
Eye relief |
30mm |
|
Pupil diameter |
8mm |
|
Operating temperature(℃) |
-40--+55-C |
|
Humidity range |
5%-95% |
|
Waterproof |
IP65/IP67 |
|
Dimensions |
150x130x75 mm |
|
Weight |
495g(housing)/780g(finished) |
Key performance
Its optical system, calibrated specifically for the GPNVG 18's wide field sensor, minimizes distortion across the entire 120° panorama, ensuring spatial relationships and distances are perceived accurately-critical for tracking moving targets, whether in tactical operations or wildlife observation.
Powered by a robust and enduring battery system, the GPNVG 18 with Wide Field Sensor (DTG-18F) offers extended operational readiness, supporting long hours of continuous use in remote or harsh environments.
The housing features non-reflective coatings and snag-free contours for stealth (ideal for non-intrusive wildlife monitoring and tactical scenarios), while its electronic architecture supports potential future digital upgrades, including wireless data transmission and embedded navigation overlays, enhancing its adaptability to evolving user needs.
Product Part Display
FAQ
Q: What is the key innovation of the GPNVG 18 with Wide Field Sensor (DTG-18F)?
A: Its key innovation is the integrated side-flip-up On/Off mechanism, which allows instant deactivation of the tubes and flipping the assembly upward to switch to unaided vision without removing the helmet.
Q: What technology does the GPNVG 18 with Wide Field Sensor use to protect its photocathodes?
A: It uses advanced auto-gating technology that instantly regulates tube gain when exposed to bright light sources, preventing temporary blindness and protecting sensitive components.
Q: What advantage does the GPNVG 18's wide field sensor bring to its optical performance?
A: The wide field sensor, paired with a calibrated optical system, minimizes distortion across the 120° panorama and ensures accurate perception of spatial relationships and distances.
Q: What features does the GPNVG 18 with Wide Field Sensor have for adaptability?
A: It has a robust battery system for extended use, non-reflective and snag-free housing, and an electronic architecture that supports future digital upgrades like wireless data transmission.
