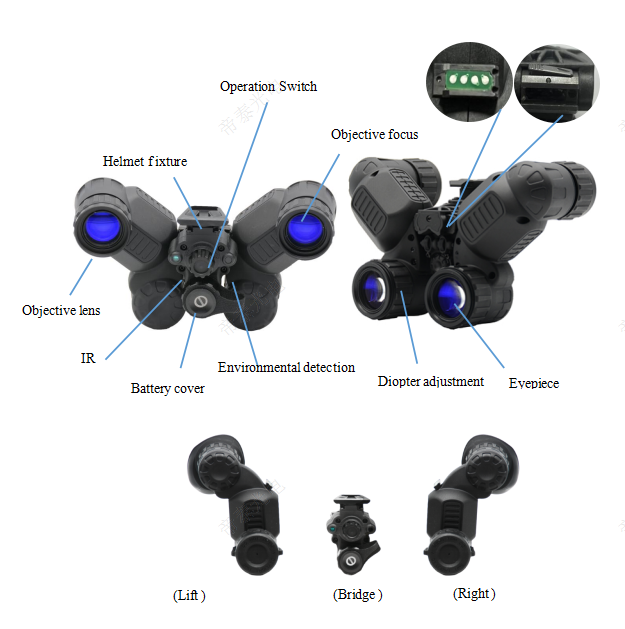

Military FOV 50/40 Night Vision Binoculars DTS-41

Model: DTS-41

1.FOV 50 ° and FOV 40°(optional)

2. Special design, adopted folding light path and veneer design, low cross section structure.

3.High-fidelity image, and no distortion in the observation screen.

4. Built-in working indicator, keep abreast of the using status.

5.In the auto mode, the IR is adjusted by environment brightness.

6. Self-developed special materials, high strength, high temperature resistance, light weight, and battery radiation resistance.

7. Center of gravity back, close to the face, head wear comfortable, lightweight to wear

8. We achieved Flip up down ON/OFF and side up down ON/OFF.

Send email to us

Technical specifications:

MODE	DTS-41
Generation	Gen 2+/Gen3(optional)
Magnification	1X
Resolution	120 lp/mm
FOV（ °）	50+/-2
Diopter	+ / – 5
Capability	Flip-Up On-Off
Optical distortion	1% Max
Automatic Brightness Control	YES
Bright Light Cut-off	YES
Infrared Illuminator	Built-in(850nm 20mW)
IR Indicator	YES
Low Battery Indicator	YES
Power Supply	CR123A/AA(1)/Battery pack
Battery Life	40 h – standard/ 300 h – with Battery Pack (optional)
Distance of pupil	25-30mm
Eyepiece aperture	9mm
Eye distance adjustment range	55-85mm
Operating temperature	-40–+55℃
Relative humidity	5%-95%
Waterproof	IP65/IP67
Dimensions	154mmx100 mm x 88mm
Weight	375g(housing )/490g(finished)
