Products Description

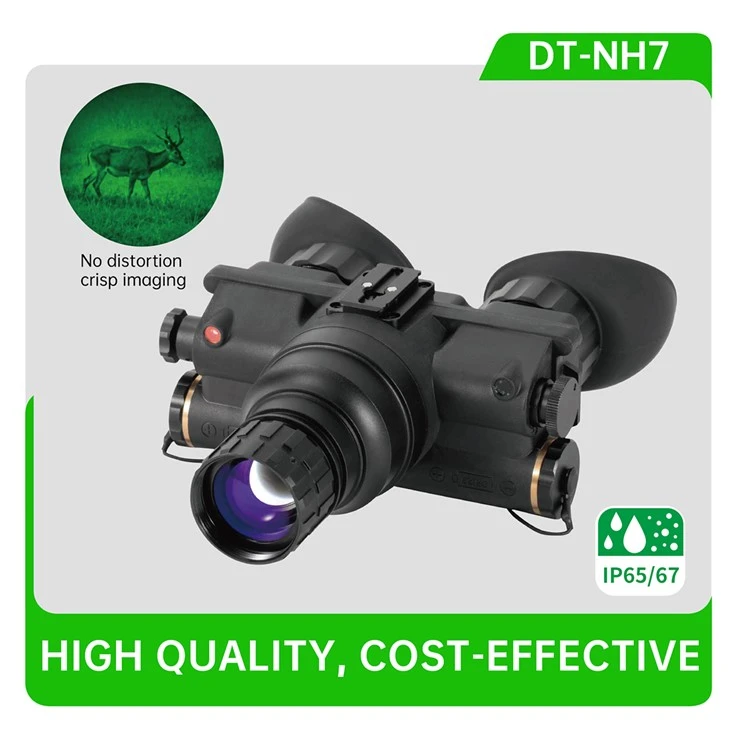

DT-NH7 Multi-Function Night Vision Goggles
DT-NH7 is a multifunctional night vision goggle developed based on advanced optoelectronic technology, designed to provide reliable nighttime observation capability for outdoor enthusiasts, security users, and professional applications. Combining compact structure, lightweight design, and high-performance image enhancement technology, DT-NH7 delivers clear and stable vision even in challenging low-light environments.
excellent image clarity
Equipped with a high-performance Gen2+ image intensifier tube, with Gen3 configuration available as an option, the DT-NH7 night vision goggles provide excellent image clarity, low-light sensitivity, and reliable performance. It is an ideal solution for users who require enhanced visibility during nighttime operations, outdoor exploration, wildlife observation, and security patrol missions.

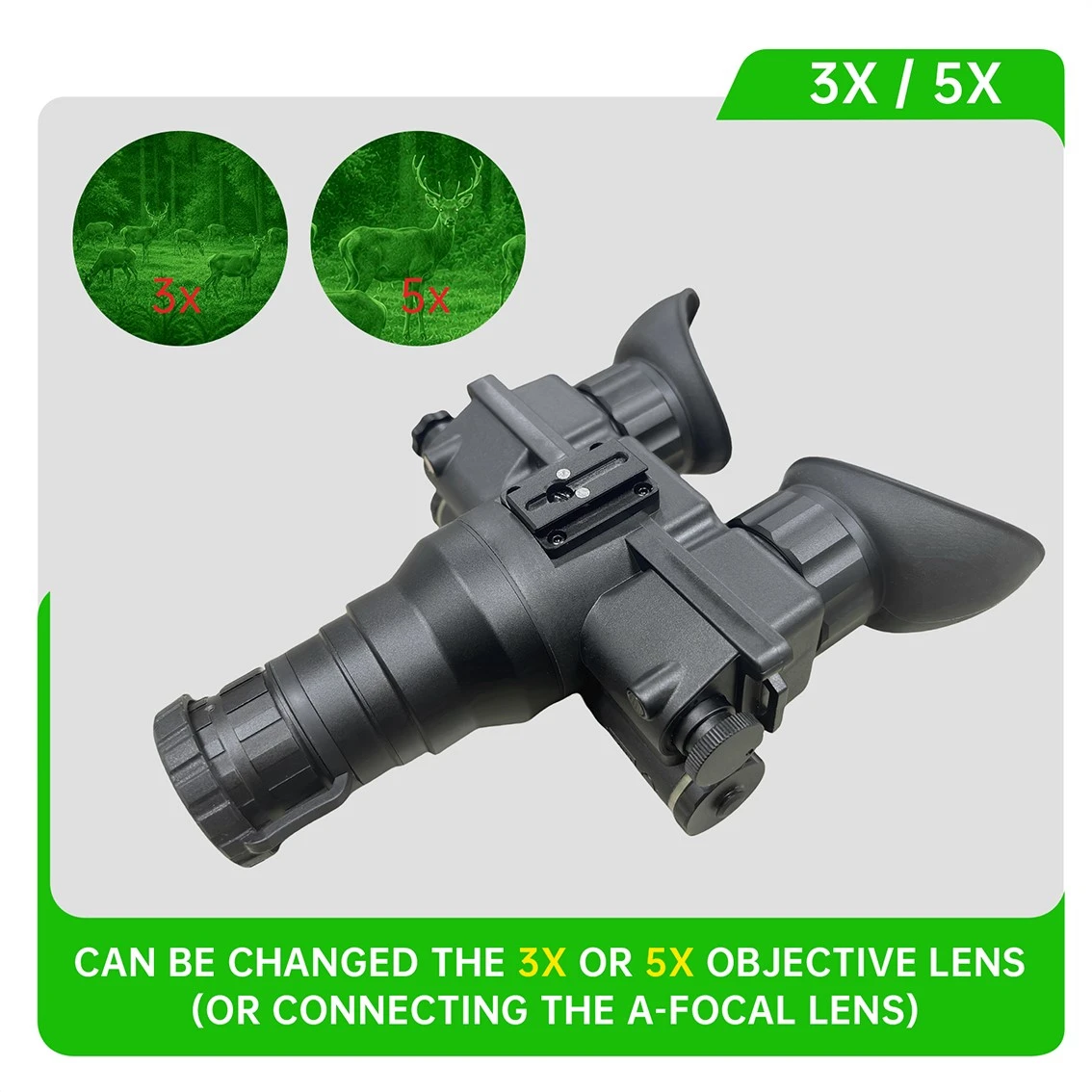

Interchangeable 3X/4X/5X objectives (or connection of 3X/5X teleconverter)
Traditional PVS-7 night vision devices are typically designed around a fixed objective configuration, limiting their optical flexibility for different observation scenarios.
This PVS-7 features an interchangeable objective system, supporting 3X, 4X, and 5X objective lenses to adapt the device to different viewing distances and operational requirements.
From close-range observation to longer-distance target identification, users can select the appropriate optical configuration according to the mission. This modular design makes the PVS-7 more versatile than conventional fixed-objective night vision systems.
Key Performance

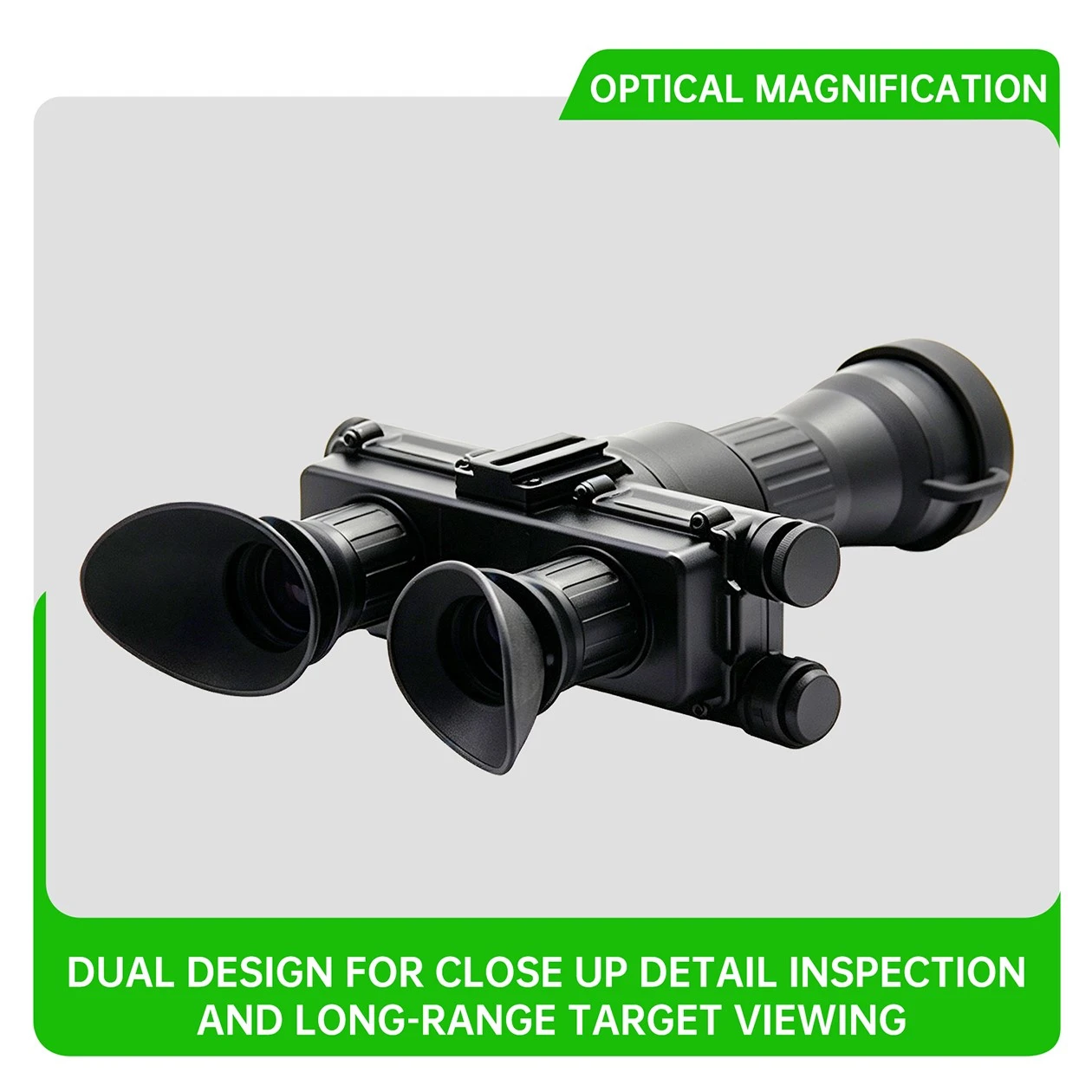

One of the key advantages of the DT-NH7 is its flexible magnification capability. The standard configuration provides 1X magnification for wide-area observation and situational awareness, while optional 3X, 4X, and 5X objective lenses allow users to extend observation distance and achieve higher target identification capability. This interchangeable lens design provides greater flexibility for different application scenarios without replacing the entire night vision system.
Technical Specification
|
MODE |
DT-NH7 |
|
Generation |
Gen 2+/Gen3(optional) |
|
Magnification |
1X (3X,4X,5X optional) |
|
FOV(°) |
42+/-3 |
|
S/N(dB) |
18-24 |
|
Luminous sensitivity(uA/lm) |
600-1000 |
| Meet-time (in hours) |
10,000 |
|
Observation distance(m) |
180-230 |
|
Diopter |
+5/-5 |
|
Lens system |
F1.2, 25mm |
|
Distortion |
<0.5% |
|
Adjustable range of eye distance(mm) |
65+/-5 |
|
Objective lens adjustment range(m) |
0.25--∞ |
|
Automatic Brightness Control |
YES |
|
Capability |
Flip-Up On-Off |
|
Material |
Aviation aluminum |
|
Power supply(v) |
2.6-4.2V |
|
Battery type(v) |
AA(2) |
|
IR Indicator |
YES |
|
Operating Temperature(℃) |
-40/+50 |
|
Relative humidity |
5%-98% |
|
Waterproof |
IP65(IP67optional) |
|
Dimensions (mm)(without eye mask) |
125x125x56 |
|
Weight(g) |
397.5g(finished) |
FAQ
Frequently Asked Questions
Lorem ipsum dolor sit amet,consectetur.
Q1: What is the DT-NH7 night vision device designed for?
+
-
The DT-NH7 is a multifunctional night vision device designed for users who require reliable nighttime observation capability. It is suitable for outdoor exploration, wildlife observation, security patrol, marine observation, and professional field applications.
With a compact structure, lightweight design, and high-performance image enhancement technology, the DT-NH7 provides clear vision in low-light environments while maintaining excellent portability.
Q2: What type of image intensifier tube does the DT-NH7 use?
+
-
The DT-NH7 night vision goggles are equipped with a high-performance Gen2+ image intensifier tube as standard, with Gen3 configuration available as an option.
Different image tube configurations allow customers to select the appropriate performance level according to their application requirements, budget, and operating environment.
Q3: What is the magnification of the DT-NH7 night vision device?
+
-
The standard DT-NH7 configuration provides 1X magnification, which is ideal for wide-area observation and maintaining situational awareness.
For users who require longer observation distances, optional objective lenses are available:
3X magnification
4X magnification
5X magnification
The interchangeable lens design allows users to upgrade observation capability without replacing the complete night vision system.
Q4: Is the DT-NH7 suitable for long-duration outdoor use?
+
-
Yes.
The DT-NH7 is designed for extended outdoor operation.
Its lightweight aviation aluminum housing provides durability while keeping the total weight approximately 400g, reducing fatigue during long observation sessions.
It is suitable for:
Wildlife observation
Camping and outdoor exploration
Night patrol
Field monitoring
Q5: Can the DT-NH7 be mounted on a helmet system?
+
-
Yes.
The DT-NH7 supports flip-up mounting applications.
The integrated flip-up on/off function allows users to quickly switch the device between active and standby modes when mounted on a helmet system, improving operational efficiency.
