Products Description
High Gain Night Vision Monoculars

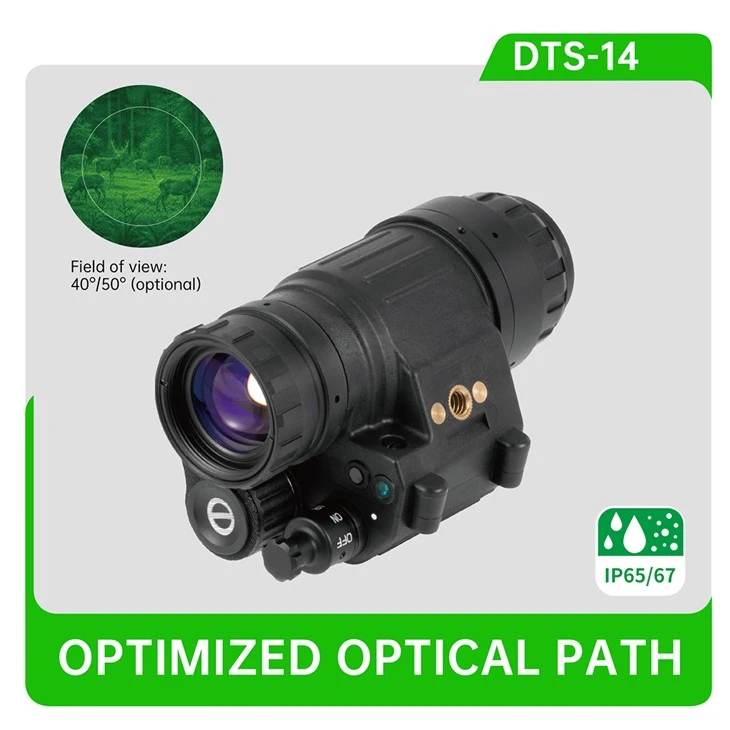

The DTS-14 stands as a premier model of High Gain Night Vision Monoculars, engineered for operators and enthusiasts who require exceptional image clarity, operational simplicity, and robust adaptability in low-light conditions. Its core design philosophy centers on versatile performance across a wide range of field applications, from tactical navigation to extended surveillance.
50° field of view
A generous 50° field of view provides users with a broad visual sweep, significantly enhancing situational awareness for effective scanning and movement in darkness. Central to its adaptability is the innovative interchangeable objective lens system.
This feature allows for precise customization of base magnification and optical characteristics, enabling a seamless shift from a wide-angle lens for close-quarters navigation to a longer lens for detailed, long-range observation.
Advanced Auto-Gain System & Multi-Scenario Usability
The unit excels in complete darkness through its powerful integrated infrared (IR) illuminator, which offers multiple intensity settings for tailored illumination. This system works in concert with a sophisticated auto-gain circuit, a critical component that defines its high gain night vision monocular capability. This circuit continuously and automatically optimizes the image tube's output, maintaining ideal brightness and contrast without any manual intervention, even under rapidly changing light conditions.
This cutting-edge auto-gain technology is what makes these High Gain Night Vision Monoculars stand out in extreme low-light scenarios, eliminating the need for constant manual adjustments during critical field operations.
Flexibility extends to the mounting options of High Gain Night Vision Monoculars. The DTS-14 can be effortlessly converted into a helmet-mounted night vision monocular using a wide array of commercially available mounts and adapters, facilitating hands-free operation. Its compact, lightweight form factor ensures it is equally practical as a handheld primary device or a portable backup visual aid.
Technical Specifications
|
MODE |
DTS-14 |
|
Generation |
Gen 2+/cen3(optional) |
|
Magnification |
1X |
|
Resolution ( lp/mm) |
60-64 |
|
S/N (dB) |
18-24 |
|
Luminous sensitivity (uA/lm) |
600-800 |
|
FOV(°) |
50+/-2(40 optional) |
|
Diopter |
-6~+4/-4~+6 |
|
Capability |
Flip-Up on-Off |
|
Automatic Brightness Control |
YES |
|
Bright Light Cut-off |
YES |
|
Infrared llluminator |
Built-in(850nm 10mw) |
|
IR Indicator |
YES |
|
Low Battery indicator |
YES |
|
Optical distortion |
<0.5% |
|
Pupil distance (mm) |
20~45 |
|
Battery voltage |
1.2~1.6W/2.4~4.2V |
|
Battery type |
CR123(A)xI/AA (1) |
|
Temperature range (C) |
-40/+55 |
|
Humidity range |
5%~98% |
|
Waterproof |
IP65(IP67 optional) |
|
Dimensions (mm) |
110x63x42 |
|
Weight (no battery) |
180g(housing)/240g(finished) |
Built with a rugged housing, the DTS-14 redefines durability standards for High Gain Night Vision Monoculars, designed for reliability in demanding environments. It is an ideal tool for professionals in border and perimeter security, wildlife researchers conducting nocturnal observations, mariners navigating low-light waters, and individuals seeking a dependable instrument for personal defense. This combination of high-gain performance, user-centric adaptability, and durable construction makes the DTS-14 a standout choice for critical night vision tasks.
FAQ
Q: What's the lead time for delivery?
A: Production time for up to 3 samples is 3-5 days.
Q: What color options are there?
A: Only black is available.
Q: What's its waterproof grade?
A: It holds an IP67 waterproof rating.
