Product Description：

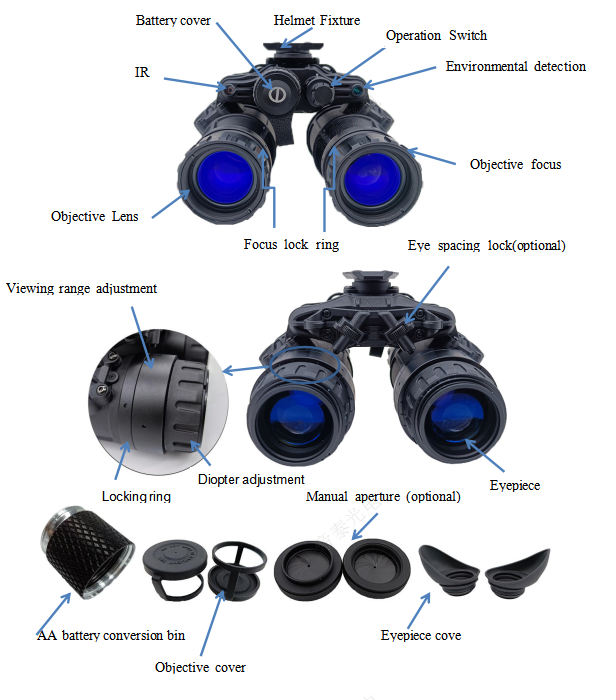

The DTS-33N is a high-performance pure military head-mounted night vision device designed by Detyl Optoelectronics, DTS-33N has a large eyepiece aperture, ultra-long pupil distance, high definition, no distortion, light weight, high strength and other characteristics (the overall performance greatly exceeds similar products of the US military) is the ideal choice for military night equipment.
Technical Specifications:
| MODE |
DTS-33N（40°） |
| Generation |
Gen2+/Gen3(optional) |
| Magnification |
1X |
| FOV(°) |
50+/-2 (40 optional) |
| Resolution |
60-72 lp/mm |
| Diopter |
-6~+4 / -4~+6 (Optional） |
| Capability |
Flip-Up On-Off, Side Flip-Up On-Off |
| Optical distortion |
0.5% Max |
| Automatic Brightness Control |
YES |
| Bright Light Cut-off |
YES |
| Infrared Illuminator |
Built-in(850nm 20mW) |
| IR Indicator |
YES |
| Low Battery Indicator |
YES |
| Power Supply |
CR123x1/AAx1/Battery pack |
| Battery life |
40-100H |
| Optical distortion |
<0.5% Max |
| Eyepiece exit pupil distance |
25-40mm |
| Eyepiece exit pupil diameter |
9mm |
| Eye distance adjustment range |
50-80mm |
| Eye distance locking method |
Manual locking(optional) |
| Operating temperature |
-40–+55℃ |
| Relative humidity |
5%-95% |
| Waterproof |
IP65/IP67 |
| Dimensions |
108x106x83 |
| Weight |
325g（housing）/465g(finished) |
